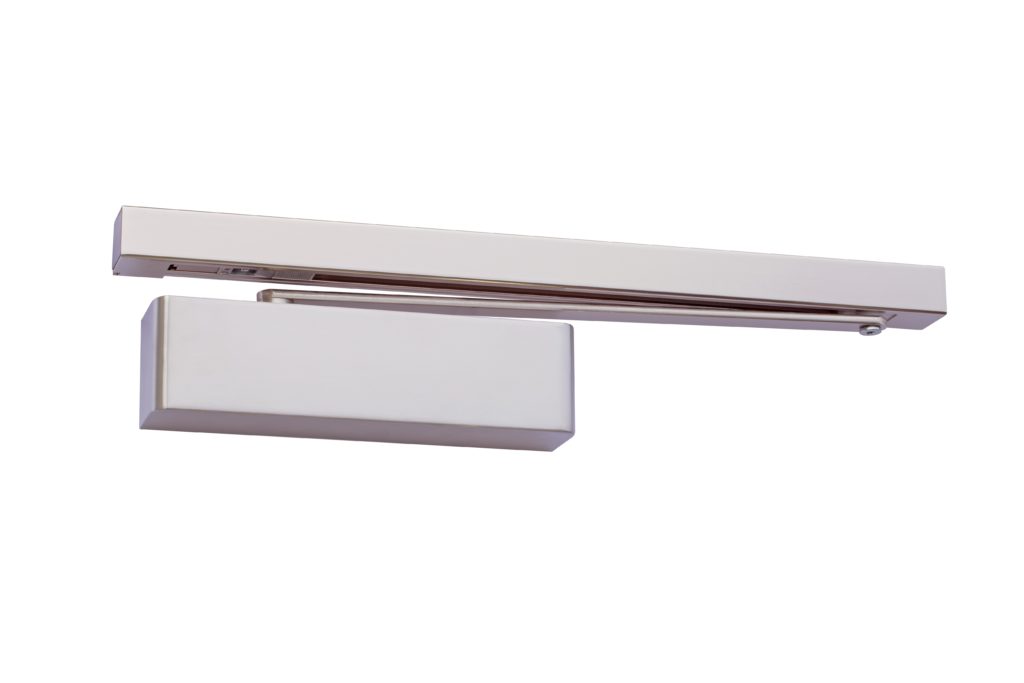

Slide plate, Rectangular or Semi Radius cover options
38mm wide slide track and cover with matching arm and integrated 24v DC electro-magnetic hold open device with adjustable holding force from 25Nm to 78Nm.
Adjustable hold open point from 80° to 140°.
Requires 24vDC± 15% (0.058A / 1.4W) power supply from transformer and relay interface with Fire Alarm System.
Adjustable closing power, speed, latch action, backcheck and delayed action.
Capable of meeting the opening force requirements of ADM and BS8300 (800mm minimum door width at EN3).
