Door Controls

S1036.EHO

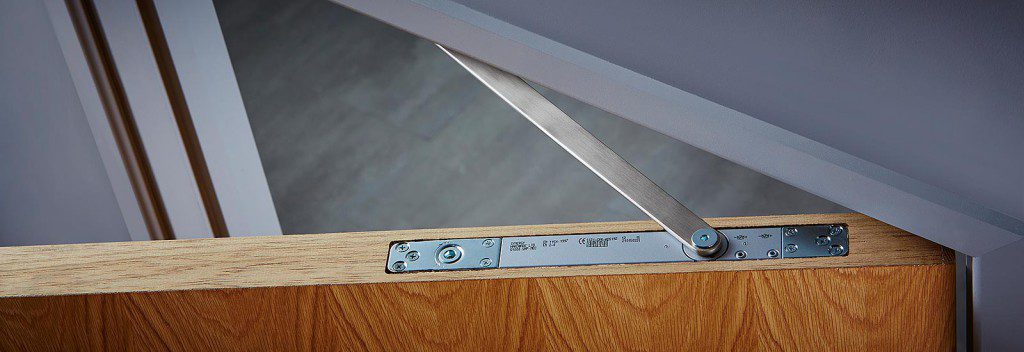

EN3-6 Power adjustable by spring concealed door closer with electro-magnetic hold open

  • Efficient cam action mechanism provides easy operation.
  • 31mm wide slide track complete with matching arm and integrated 24v DC electro-magnetic hold open device with adjustable holding force from 25Nm to 78Nm.
  • Adjustable hold open point from 80° to 120°.
  • Requires 24vDC± 15% (0.058A / 1.4W) power supply from transformer and relay interface with Fire Alarm System.
  • Adjustable closing power, speed and latch action.
  • Minimum door thickness 44mm.
  • Capable of meeting the opening force requirements of ADM and BS8300 (950mm minimum door width at EN3)
  • Certifire approved product

Available Finishes
