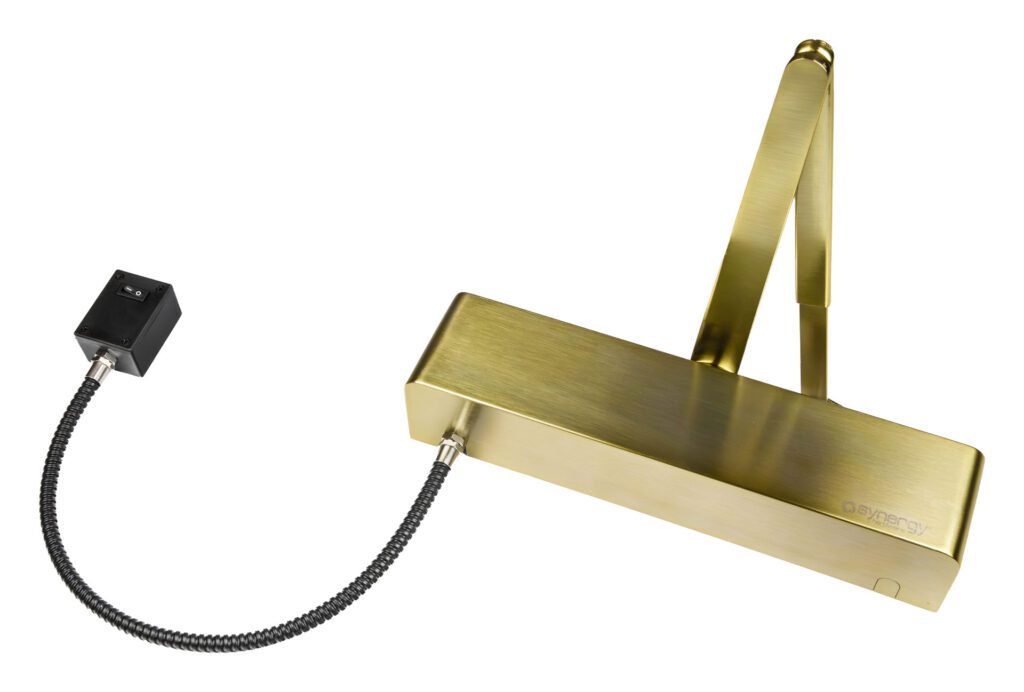

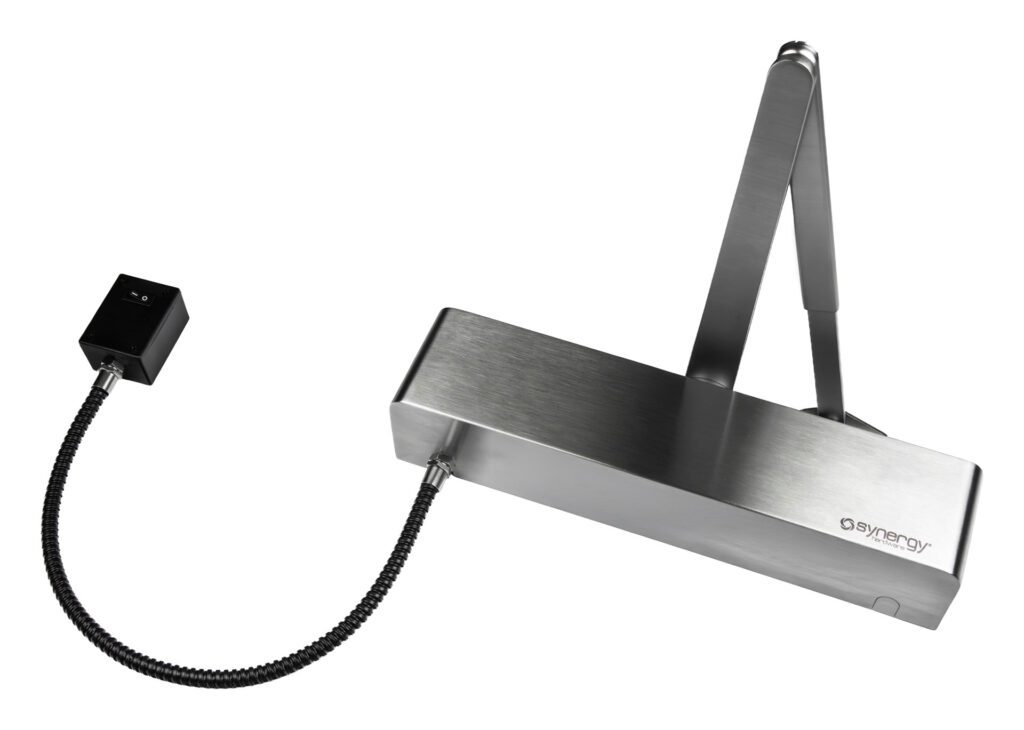

S900E
EN-3-6 power adjustable by spring electro-magnetic hold open / swing free door closer
- Aluminium extruded body
- Spring power adjustable size 3-6
- Suitable for use in Fig 1 (Door mount pull) or Fig 6 (Door mount push) applications
- Optional hold open / swing free mode with quick and easy adjustment
- Adjustable closing speed and latch action
- Soft Motion feature ensures safety for users upon fire alarm actuation
- Available with Stainless Steel material Semi Radius cover and a full range of finishes
- Specifically designed for use on doors with 18mm architraves
- Tested in accordance with EN1155: 1997, suitable for the following maximum door width / weight:
- Fig 1 (Door mount pull) – 1400mm / 120Kg
- Fig 6 (Door mount push) – 1250mm / 100Kg
- Variable Hold open and swing free range between 75° and 160°
- Requires 24vDC± 15% (0.058A / 1.4W) power supply from transformer and relay interface with fire alarm system
- Supplied with switched control box
- Optional 450mm Black or Silver loop / control box (please specify preference on ordering) with longer 650mm loops available separately
- Suitable for use with PSU24 and PSU48 regulated power supplies
- Satisfies the requirements of BS8300 and Approved Document M for door closing devices in hold open or swing free mode
Available Cover & Arm Finishes
